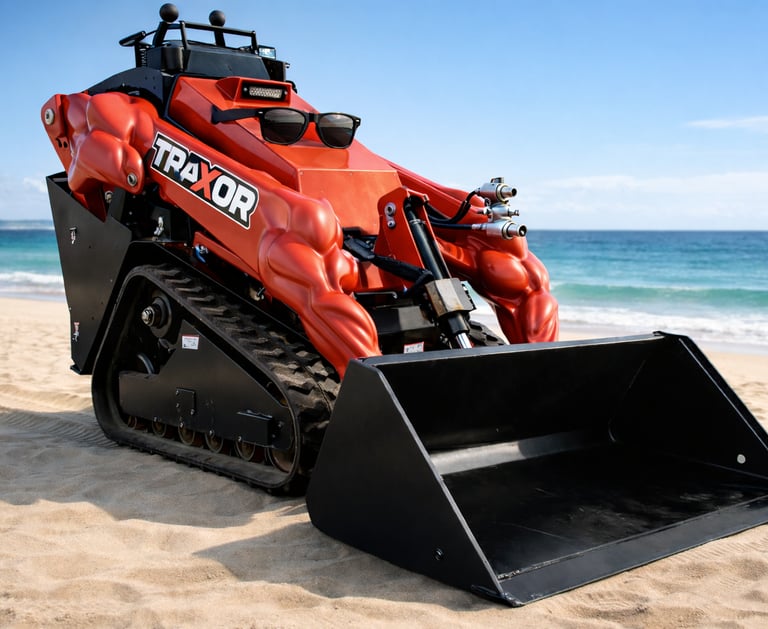

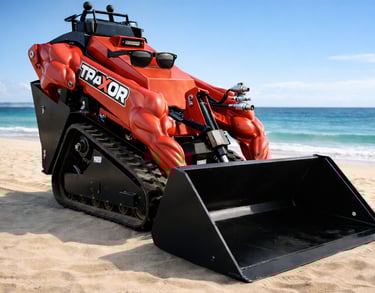

Traxor Specs

Basic Performance Parameter

• Operating weight: 4,170 lb

• Bucket capacity: 0.25 cu yd

• Climbing ability: 25°

• Maximum breakout force: 1,012 lbf

• Rated load: 1,102 lb

• Maximum load: 1,433 lb

• Travel speed: 0–3.7 mph

• Vehicle width: 37.8 in

• Rated pressure: 2,465–2,900 psi

• Bucket width: 48.8 in

• Max loading height: 82.8 in (6.9 ft)

• Max dumping height: 59.9 in (5.0 ft)

• Max operating height: 110.0 in (9.2 ft)

• Height to bucket pin: 84.3 in (7.0 ft)

• Max height bucket dump angle: 63°

• Minimum height: 61.0 in (5.1 ft)

• Departure angle: 29°

• Ground clearance: 7.9 in

• Dumping distance (reach): 19.6 in

• Track contact length: 42.5 in

Dimensions

• Overall dimensions (L × W × H): 106.0 × 48.8 × 61.0 in

• Length incl. bucket: 106.0 in (8.8 ft)

• Length excl. bucket: 78.0 in (6.5 ft)

• Track size (W × Pitch × Link): 9.1 × 2.8 × 1.8 in

Engine

• Engine brand: Kubota

• Engine model: 3TNV80 / D1105

• Rated power: 23.9 hp

• Cylinders: 3

• Intake: Naturally aspirated

• Emissions: EPA / EU Stage V

• Fuel tank capacity: 10.6 gallons (US)

Quick Industry Takeaway

• Fits well into the 1,000–1,200 lb ROC mini track loader class

• ~3.7 mph travel speed is competitive

• ~83 in load height is solid for trucks & dumpsters

• Narrow 37.8 in width = great for gates & indoor work
